YOX,YOXII,TVA: Location ：首頁 > MAIN > FLUID COUPLINGS > YOX SERIES

YOX,YOXII,TVA

* source : m.shanxiouke.com * release time : 2017-08-22 15:17:59 * font size：【大中小】

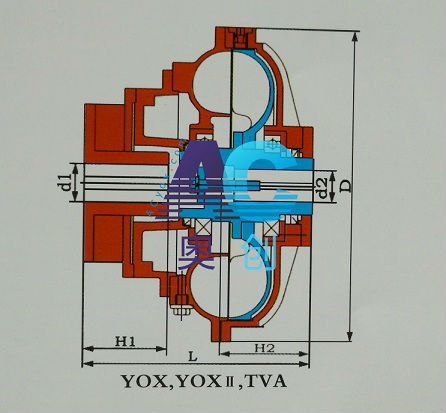

YOX,YOXII,TVA fluid couplings' structure

1. For YOXII560, Lmin=489 H1max=170 for diameter, of motor shaft≤φ95.
Lmin=529 H1max=210 for diameter, of motor shaft≥φ100.

2. When H1 and H2 are greater than listed H1max and H2max, L should be increased correspondingly.

3. TVA562, TVA650, TVA750, TVA866 are products licenced by Voith Turbo GmbH & Co.KG of Germany.

4. The screw inside shaft in figure is optional.

型號Type No.	Lmin	D	輸入端Input side		輸出端Output side		充油量Oil filling(L)		重量(不包括油)Weight w/o oil(kg)	最高轉速Max.speed(r/min)	過載系數(shù) Overload ratio
型號Type No.	Lmin	D	d1max	H1max	d2max	H2max	max.	min.	重量(不包括油)Weight w/o oil(kg)	最高轉速Max.speed(r/min)	過載系數(shù) Overload ratio
YOX200	210	Ø254	Ø28	60	Ø30	55	0.8	0.4	10	1500	2～2.5
YOX220	190	Ø272	Ø28	60	Ø30	55	1.28	0.64	12	1500	2～2.5
YOX250	215	Ø300	Ø38	80	Ø35	60	1.8	0.9	15	1500	2～2.5
YOX280A	246	Ø345	Ø38	80	Ø40	100	2.8	1.4	18	1500	2～2.5
YOX320	304	Ø388	Ø48	110	Ø45	100	5.2	2.6	28	1500	2～2.5
YOX340A	278	Ø390	Ø48	110	Ø45	110	5.8	2.9	25	1500	2～2.5
YOX340B	288	Ø390	Ø48	110	軸shaft Ø38	95	5.8	2.9	35	1500	2～2.5
YOX360	310	Ø420	Ø55	110	Ø55	110	7.1	3.55	49	1500	2～2.5
YOX360A	310	Ø420	Ø55	110	花鍵孔spline hole 42×2.5×16		7.1	3.55	49	1500	2～2.5
YOX380	320	Ø450	Ø60	140	Ø60	140	8.4	4.2	58	1500	2～2.5
YOX400	356	Ø480	Ø60	140	Ø60	150	9.3	4.65	65	1500	2～2.5
YOX420	368	Ø495	Ø60	140	Ø60	160	12	6	70	1500	2～2.5
YOX450	397	Ø530	Ø75	140	Ø70	140	13	6.5	70	1500	2～2.5
YOX500	411	Ø590	Ø85	170	Ø85	145	19.2	9.6	105	1500	2～2.5
YOX510	426	Ø590	Ø85	170	Ø85	185	19	9.5	119	1500	2～2.5
YOX560	459	Ø650	Ø90	170	Ø100	180	27	13.5	140	1500	2～2.5
TVA562(YOX562)	449/471	Ø634	Ø100	170	Ø110	170	30	15	131	1500	2～2.5
YOX600	474	Ø695	Ø90	170	Ø100	180	36	18	160	1500	2～2.5
TVA650(YOX650)	536	Ø740	Ø125	225	Ø130	200	46	23	219	1500	2～2.5
TVA750(YOX750)	603	Ø842	Ø140	250	Ø150	250	68	34	332	1500	2～2.5
TVA866(YOX866)	682	Ø978	Ø160	280	Ø160	265	111	55.5	470	1500	2～2.5
YOX1000	722	Ø1125	Ø160	250	Ø160	280	144	72	600	1000	2～2.5
YOX1150	830	Ø1295	Ø180	300	Ø180	300	220	110	910	750	2～2.5
YOX1320	953	Ø1485	Ø200	350	Ø200	350	328	164	1440	750	2～2.5
YOXII400	356	Ø480	Ø70	140	Ø70	140	9.3	4.65	65	1500	2～2.5
YOXII450	397	Ø530	Ø75	140	Ø70	140	13	6.5	70	1500	2～2.5
YOXII500	435	Ø590	Ø90	170	Ø90	170	19.2	9.6	105	1500	2～2.5
YOXII560	489/529	Ø650	Ø100	170/210	Ø110	170	30	15	131	1500	2～2.5
YOXII650	556	Ø740	Ø130	210	Ø130	210	46	23	219	1500	2～2.5
YOXII750	618	Ø842	Ø140	250	Ø140	250	68	34	332	1500	2～2.5
